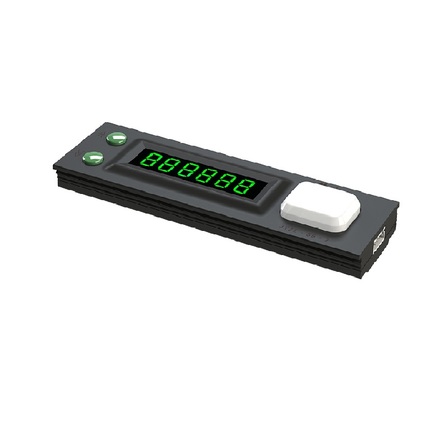

1. The tag use ultra-thin design, compact and delicate.
2, Confirm button use of mechanical shaft button, good feel, lifetime up to 20 million times.
3. Low power consumption, the power consumption of each tag is not more than 0.2W.
4. The picking tag adopts two-wire intelligent bus mode, and the two wires are both power line and communication line.
5, two lines of embedded guide rail installation, tag without any wiring, buckle into the track can work, installation is very easy.
6, Automatic online detection, for online tag the background timely monitoring, offline tags the background timely alarm.

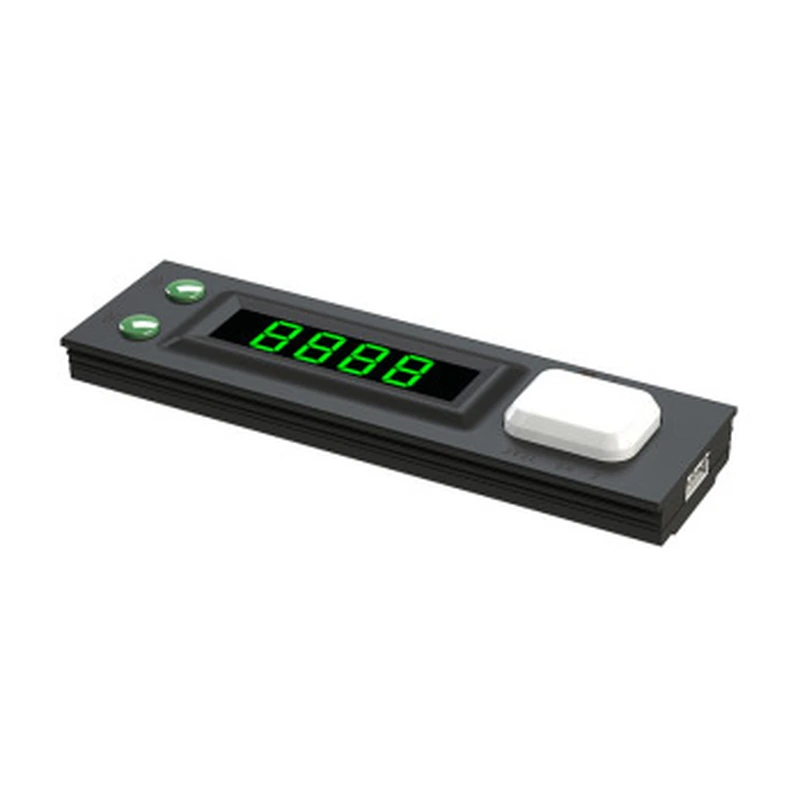

Model : 2L-G4
Digits size and color： | 0.4inch 4green digits |
Communication distance： | ＜500m |
Button life： | ＞50 millions times |
Light color：7 | Red, green, blue, yellow, light blue, purple，white ） |
size： | L-120mm W-36mm H-11.5mm |
Display | Digital tube |
Input power： | 24V |
power | ＜0.2W |
Working temperature | -35 ℃~70℃ |
Install Size ： | L-140mm W-50mm H-15.5mm |
Input power： | 24V |
Resolution： | 240*320 |
working temperature： | -35 ℃~70℃ |
