Main Features：
Non-contact automatic body temperature detection, face scanning while performing high
precision infrared body temperature collection, fast and efficient;
Temperature measurement range 30-45 (℃) accuracy ±0 . 3 (℃)
Automatic identification of people who are not wearing masks and real-time early warning;
Support long-range temperature measurement, high temperature real-time warning;
Support temperature data S D K and HTTP protocol docking;
Automatic registration, recording of information, avoiding manual operations, improving
efficiency and reducing omission of information;
Support binocular live detection
Unique face recognition algorithm to accurately recognize faces, facial recognition time < 0 . 5
seconds
Support dynamic face tracing exposure under strong backlighting condition, support machine
vision optics wide dynamic ≥ 80dB;
The system is running more stable which adopts LINUX OS .
Interface protocols are rich and supporting SDK and HTTP protocols across a wide range of
platforms such as Windows/Linux , etc .
8" IPS HD display
IP34 rated dust resistant & waterproof
Average trouble-free operation time MTBF > 50000 H
Support 22,400 faces comparison library and 100000 facial recognition records
Support one Wiegand input or Wiegand output
Support through the fog , 3D noise reduction, strong light suppression, digital anti-
shake, having various white balance modes, suitable for all scenarios
Support electronic voice broadcasting (normal or ultra high alarm, facial recognition verification
results)
Operate steadily for a long time in the environment temperature 0℃ to +50℃
Specification parameters:
Specification model | BTS-FT700 |
Hardware | |
Processor | Hi3516DV300 |
Operating system | Linux OS |
Storage | 16G EMMC |
Imaging devices | 1/2 . 7" CMOS |
Lens | 4m |
Camera Parameters | |
Camera | Binocular camera, support live detection |
Valid pixels | 2 million valid pixels, 1920*1080 |
Lowest illuminance | color 0 . 01lux @F1 .2 (ICR); black and white 0 . 001lux @F1 .2 |
Signal to noise ratio | ≥ 50db (AGC OFF) |
Wide dynamic range | ≥ 80db |
Face performance | |
Facial Recognition Height | 1 .2-2 .2 m, adjustable angle |
Facial recognition distance | 0 . 5-3 m |
Visual angle | 30 degrees up and down |
Recognition time | ＜500ms |
Functions | Support 22,400 faces comparison library and 100,000 facial recognition records |
Temperature Performance | |
Temperature range | 30-45 (℃） |
Temperature measurement accuracy | ±0 . 3 (℃) |
Temperature measuring distance | ≤ 0 . 5 m |
Response time | ＜300ms |
Interface | |
Web interface | RJ45 10M/100m Adaptive Ethernet Ports |
Wiegand interface | Support Wiegand input or Wiegand output, support Wiegand 26 and 34 |
Alarm Output | 1 I/O Output |
USB interface | 1 USB interface (external ID card reader) |
Optional | |
ID Card Reader | Option, external device connection |
QR Code Reader | Option, external device connection |
General Parameters | |
Power supply | DC 12V/3A |
Consumption | 20W (MAX) |
Operating temperature | -0℃- +50℃ |
Working humidity | 5— 90% relative humidity, no condensation |
Device Dimensions | 154 (width) * 89 (thickness) *325 (height) mm |
Device Weight | 2 . 1 kg |
Column aperture | 33mm |

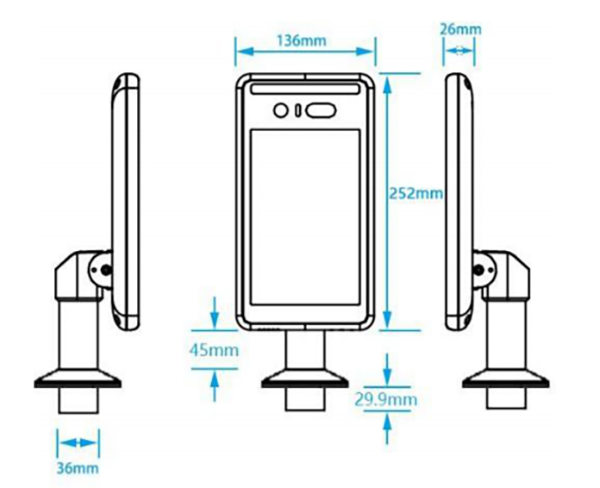

Product Dimensions:

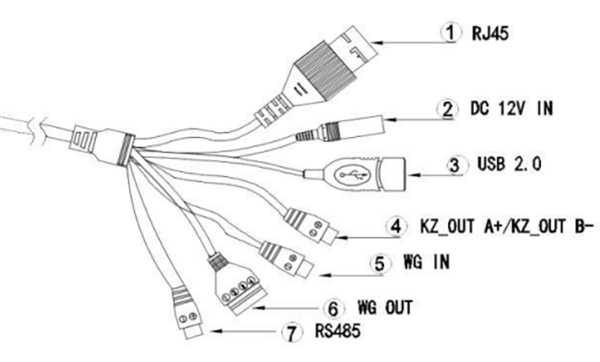

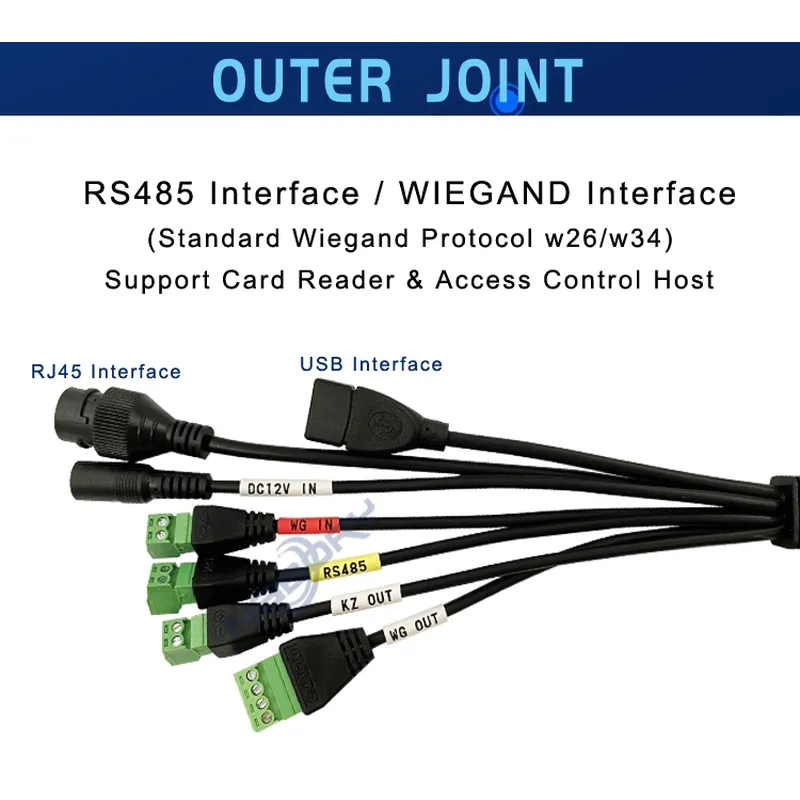

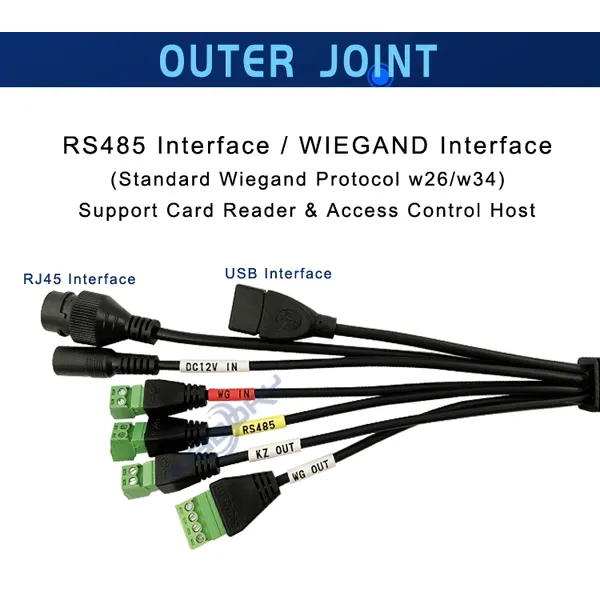

Interface Definition:
